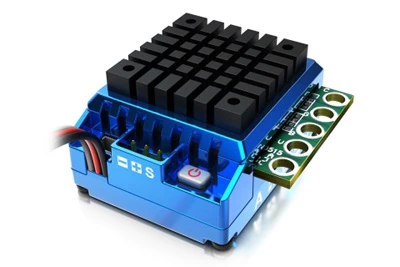

Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system. This feature does away with the need to use a separate receiver battery pack.

10 User Modifiable Profiles

The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.

Firmware Update

The firmware can be updated by connecting the ESC with PC or smart phone.

Programming Method

It can be programmed by PC connected with

1.SKYLINK(SK-600013)
2.Smart phone via Bluetooth Module(SK-600058)
3.PROGBOX(SK-300046)

Precise Programmable Items

Advanced Timing System
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.

Well-performed Throttle and Brake Control Function

Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers’ request for linear and power all can be met.

Includes ESC, wiring, fan, instructions, stickers and capacitor.

Spec

• Brand: SkyRC
• Part No: SCH-SK-300044-01
• Barcode: 5051294088583
• Motor Type: Brushless
• LiPo Compatible: Yes
