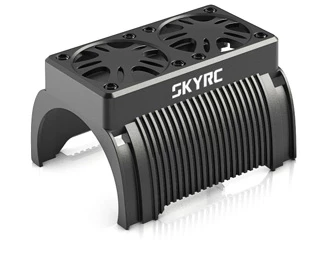

SkyRC Sky RC Motor Cooling Fan 1:5 Scale (55mm Diameter Motors)

The SKYRC twin motor cooling fan with housing fits 1/5 scale motor with diameter of 55mm and power connector can plug directly into any open channel of the receiver or BEC, it can reduce the temperature of the motor quickly and get the motor as cool as possible. Pushing your 1/5 scale car to the limit! The SKYRC twin motor cooling fan with housing fits 1/5 scale motor with diameter of 55mm and power connector can plug directly into any open channel of the receiver or BEC, it can reduce the temperature of the motor quickly and get the motor as cool as possible. Pushing your 1/5 scale car to the limit!

• Fan housing made of heat-resisting material
• Twin super big cooling fans with high rotation speed and good airflow
• Reasonable design with most cooling efficiency
• Easy to install and remove
• Two zip ties for easy and firm fastening

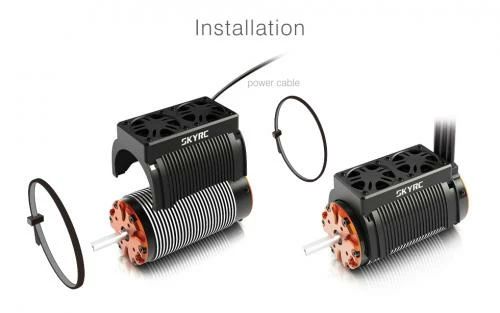

1. Fasten the fan to the motor with two zip ties.
2. Connect the power connector of the fan to any open channel of the receiver or to BEC.(Note: There is positive and negative polarity of the connector and make sure to connect it correctly.)
3. Once the system is powered on, the fan is working.
Weight : 65g
Input Voltage : 5-7.4V
Cooling Fan : Twin 40x40x10mm with 500mm Length Cable and JR Male Connector
Zip Ties Length : 250mm
Suitable Motor Size : 1/5 Scale X528 Motor (Φ55x112mm)
