The World’s Most Joyful Round Battery Charger

The creation of this product arose from the desire to finally have a charger as versatile, accurate and powerful as a SkyRC hobby charger but tailored to a sweet battery tray for cylindrical single cell batteries; no more hassle with battery holders, fiddly wiring, clamps or similar DIY solutions.

Multi-Chemistry

Support 9 + battery chemistries

Effective Cooling

The built-in aluminum cooler effectively dissipates heat generated in the inside of the charger to the environment, even at slow fan speed.  Twin fan for great cooling.

Compact Display

The 128×64 pixels screen shows 5 different views during operation, see above a picture of Total Overview (TOV).

Rich User Interface

Eight Buttons for easy programming and operation. Four Slot Number Buttons (SNB) help to address the different slots. The other four buttons are for programming and operation.

Easy Programmability

In Simple and Advanced UI modes, the charger operates off 30 user-defined operation profiles. The programs can be called up and run with few clicks, very conveniently.

Secure Stand

Rubber feet and strong tilt stand elements provide a firm stand. Tilted position enhances viewing angle and cooling air flow at the bottom side.

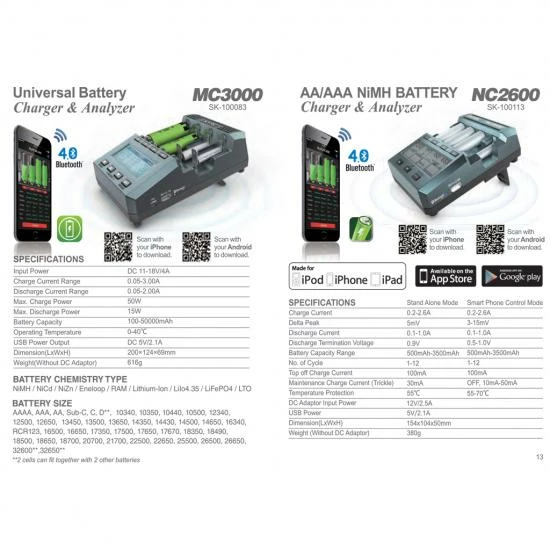

Specifications

Input Power

DC 11-18V/4A

Charge Current Range

0.05-3.00A

Discharge Current Range

0.05-2.00A

Max. Charge Power

50W

Max. Discharge Power

15W

Battery Chemistry Type

NiMH, NiCd, NiZn, Eneloop,Lithium-Ion, LiIo4.35, LiFePO4,RAM,LTO

Battery Capacity

100-50000mAh

Operating Temperature

0-40?

USB Power Output

DC 5V/2.1A

Dimensions(LxWxH)

200×124×69mm

Weight(Without DC Adaptor)

600g

Contents
Charger Unit
Power Supply
240v 3 pin power lead

Spec

• Brand: SkyRC
• Part No: SCH-SK-100083
• Barcode: 5051294110369
• Input Voltage: 12V
• Chemistry:
  • LiPo
  • NiMh / NiCd
