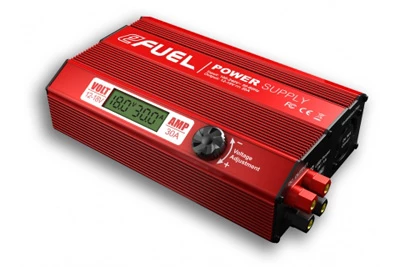

SkyRC Sky RC EFuel 30A 540W Power Supply

Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.

FEATURES

* Two DC power outputs, up to 30 amperes
* Output voltage adjustable 12-18V
* Large LCD indicates voltage and current amperes output
* Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection

Voltage……………………………….100-240V AC
Input AC Frequency…………………………….50-60Hz
Output Voltage…………………………..12-18V DC±0.5V
Output Current………………………………30A±1A
Current Overload Protection……………………….=31A 500MS
Input Fuse…………………………….. 10A Fuse
LCD Display…………………………Voltage Precision ±0.3V
Output Voltage Ripple……………………………< 150mV
Power Efficiency………………………………89%
Power Factor………………………………..> 0.98
Over Temperature Protection…………………………<65?
Cooling Method…………………………….Cooling Fan
Operating Temperature……………………………0-40?
Operating Humidity……………………………..0-90%
Dimensions (L*W*H)………………………..218x139x59.5mm
Net weight…………………………………1.62kg
