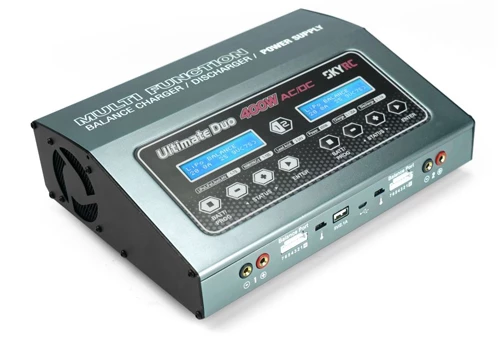

SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC/DC mode to get max charging power to shorten charging time.
Moreover, it is not only just a charger, but also can supply 150 Watts DC Power on channel 2, users can use it to power DC devices. What’s more, the synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits.

Power Distribution It supports power distribution, for example,Channel 1-300w, then channel 2-100W, the total power is 400W. Please note the Max power of channel 2 is 200w, but that of channel 1 is 400W.

DC Power Supply SkyRC D400 can supply 150 watts DC Power on channel 2. User can use it to power equipments that require DC Power. It converts standard 100-240V AC mains to 6-15V DC output.

Specifications

Dimentions – 258 x 194 x 82.5
Weight – 2510g
Input Voltage – AC 100-240V/DC 11-18V
Charge Circuit Power – 400W
Discharge Circuit Power – 36W
Charger Current Range – 0.1-20A
Discharge Circuit Power – 0.1-5A
Current Drian for Balancing Port – Max 500mA/cell
Trickle Charging Current – 50mA-300mA & OFF
DC Power Supply Output – 6-15V/Max.10A
LiPo/LiFe/Lilon/LiHV Battery Cell Count – 1-7S
NiMH/NiCd Battery Cell Count – 1-18S
Pb Battery Voltage – 2-24V

Instruction Manual

Includes 240v UK input lead, 2 x XT60 & 2 x blank charge leads and 2 x balance boards and leads.

Spec

• Brand: SkyRC
• Part No: SCH-SK-100123
• Barcode: 5051294119515
• Input Voltage:
  • 12V
  • 240V (UK mains)
• Included Connectors:
  • 4mm Banana Sockets
  • XH LiPo Balancers
• Chemistry:
  • LiPo
  • NiMh / NiCd
  • Sealed Lead Acid
