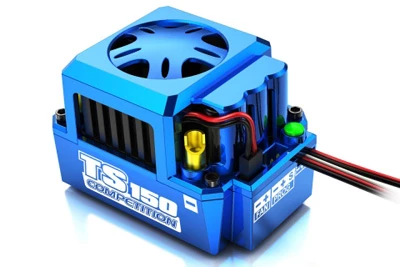

Toro TS150 150A ESC is big power in a small package, intending for 1/8th buggies, truggies and monster trucks running up to 6S LiPo. The innovative new case allows for fan changes and built-in 6V/5A BEC.

Leading the industry not only in power handing ability but also size and features with Throttle Control, Drag Brake, Custom Brake Input Curve,Voltage Cutoff for LiPo, ESC and Motor Overheat Protection and much more.

As always, Toro TS150 150A ESC offers industry-leading software and firmware update functions and can be programmed by SkyLink via PC, Program Box and even your smart phone.

Unique Electronic Power Switch

A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.

10 User Modifiable Profiles

The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.

Programming Method

It can be programmed by PC connected with
1.SKYLINK(SK-600013)
2.Smart phone via Bluetooth Module(SK-600058)
3.PROGBOX(SK-300046),

Precise Programmable Items

Turbo Timing

When the car is in full throttle, turbo timing set can improve the RPM to get its best performance.

Well-performed Throttle and Brake Control Function:

Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers’ request for linear and power all can be met.

Weight 95g (w/o wire)
Constant/Burst Current 150A/950A
Motor Compatible Brushless Sensor & Sensorless ESC
Car Compatible 1/8 Buggy, Truck and Monster
Motor Limits 2-4S Lipo KV=3000,2-6Poles
2-6S Lipo KV=2400, 2-4Poles
Resistance 0.0002ohm
Battery Cell Count 6-19S NIMH or 2-6S LIPO
BEC Output 6V@5A
FAN [email protected]

Spec

• Brand: SkyRC
• Part No: SCH-SK-300045-01
• Barcode: 5051294088590
• Motor Type: Brushless
• LiPo Compatible: Yes
